VMAC Underhood

Air power when you need it. Once your truck engine is at operating temperature, simply flip the switch and within seconds your VMAC Underhood Air Compressor System is fully ready to deliver up to 70 CFM or 150 CFM (depending on the model). Built-in controls vary the truck's RPM to match your air requirements.

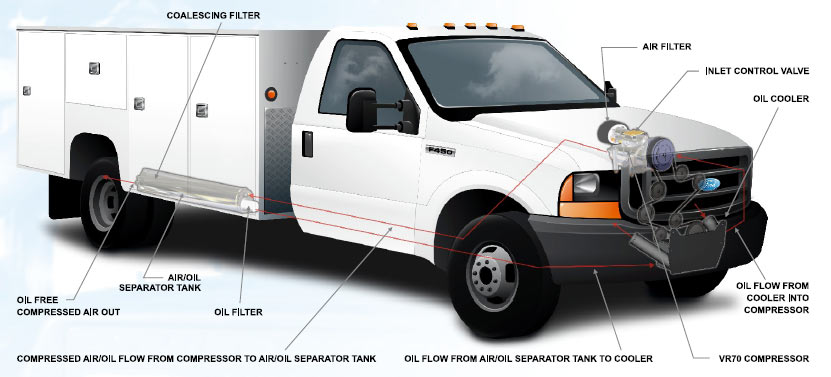

Click Here To Enlarge

VR70
VR140
Output
Up to 70 CFM
Up to 150 CFM
Up to 175 PSI
System Weight
-150 lbs
-210 lbs
Compressor
Size: 7.0" w x 11.0" l x 6.5" h
Size: 9.0" h x 13.75" l x 7.5" h
Type: Oil flooded rotary screw
Bracket
Lightweight cast aluminum design
Application engineered
Air/Oil Separator Tank
Size: 6.0" d x 31.0" l
Size: 9.0" d x 31.0" l
Lightweight aluminum
Mounts along the frame rail
Oil Cooler
Size: 4.25" w x 9.0" l x 3.5" h
Size: 5.6" w x 12.1" l x 4.6" h
Type: Liquid to liquid
Mounts below the radiator


VR70
VR140
Throttle Control
Adjusts engine speed to match air demand
Warranty
2 years on compressor
Safety Features
Vehicle drive disable circuit on throttle control
Park brake safety shut-off switch on control box
Automatic rapid blow-down valve on tank
200 PSI pressure relief valve on tank
Electric clutch on compressor
Optional Accessories
System De-icer
Hose Reel
Air Receiver (Wing) Tank
Eliminator70 Air AfterCooler
n/a
Filter Regulator Lubricator
n/a
Heavy Duty Air Filter
n/a
