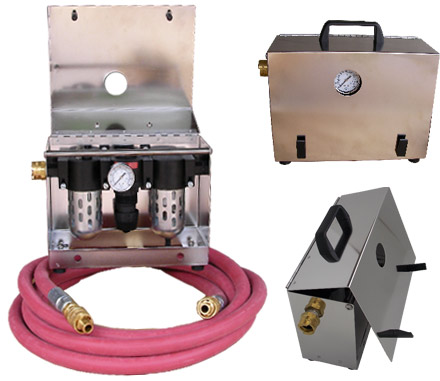

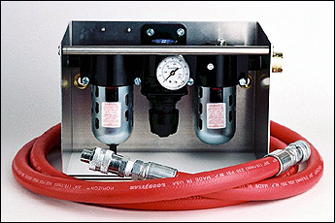

Portable Filter, Regulator, Lubricator

Filter, Regulator, Lubricators are needed for each tool in service. This regulates air pressure to the required 90 to 100 psi and provides the clean lubricated air required for maximum tool life.



Portable FRL Unit Specifications

  • Flow Capacity*: 1/2" 128 SCFM (60.4 dm 3/s)
  • Pressure Rating: 0 to 150 (PSIG (0to 10.3 bar)
  • Temperature Rating: 32° to 125°F (0° to 52°C)
  • Port Threads: NPT 1/2
  • Gauge Ports (2): NPT / BSPP-G 1/4
  • Standard Filtration: 5 Micron
  • Weight: 10.5 lb (4.7 kg)

  *Inlet Pressure 150 PSIG (10.3 bar). Pressure drop 5 PSID (0.3 bar).

Specifications - Portable FRL

  • Folding Box: 16 gauge brushed stainless steel
  • Handle: Matte finished reinforced nylon
  • Hinge: Aluminum
  • Mounts: Vibration isolators w/1/4 x 20 tapped hole
  • Hose: 3/4 x 20' red rubber, 300 lbs. max op., complete w/double male brass quick connect
  • PVA & FRL Fitting: 1/2" NPTX female brass quick connect
