Vanair Viper

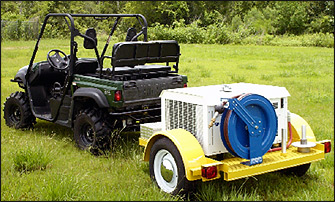

When you need a high-performance air compressor that delivers proven performance on or off your truck, you need a Vanair Viper Series Engine-Driven Air Compressor. This gas-powered, compact unit can easily be loaded and unloaded from your pickup for maximum versatility.

The Viper is ideal for monument engraving, irrigation service, rental markets, post pounding, directional boring, and general construction.







Vanair Viper Specifications

  • Capacity (CFM) 60 60 70 80
  • Air Pressure (psi) 100 150 100 100
  • Full Load Engine Speed (rpm) 3580 3580 3300 3575


Compressor Dimensions with fittings (in.) – 42L x 33W x 29.5H
Dry Weight (lbs.) – 535

SPECIAL FEATURES

Compressor
  • Vanguard™ Lifetime Warranty on air end
  • Oil-injected Sullair® rotary screw air end
  • Powder-coated, galvanneal sheetmetal enclosure
  • Spin-on air-oil separating element

Engine
  • Make: Kohler
  • Fuel type: gasoline
  • Engine type: 4-cycle, V-twin, overhead valve
  • Horsepower: 25 HP
  • Fuel tank capacity: 5 US gal.

Integrated Inlet Control
  • Eliminates bolt-on designs

Safety Equipment
  • High-temperature shutdown
  • Air pressure-relief safety valve
  • Minimum pressure orifice
  • Automatic blowdown on shutdown
  • Oil fill plug safety relief

Included Accessories
  • Lifting Bail
